Brady  |  SKU: 813594

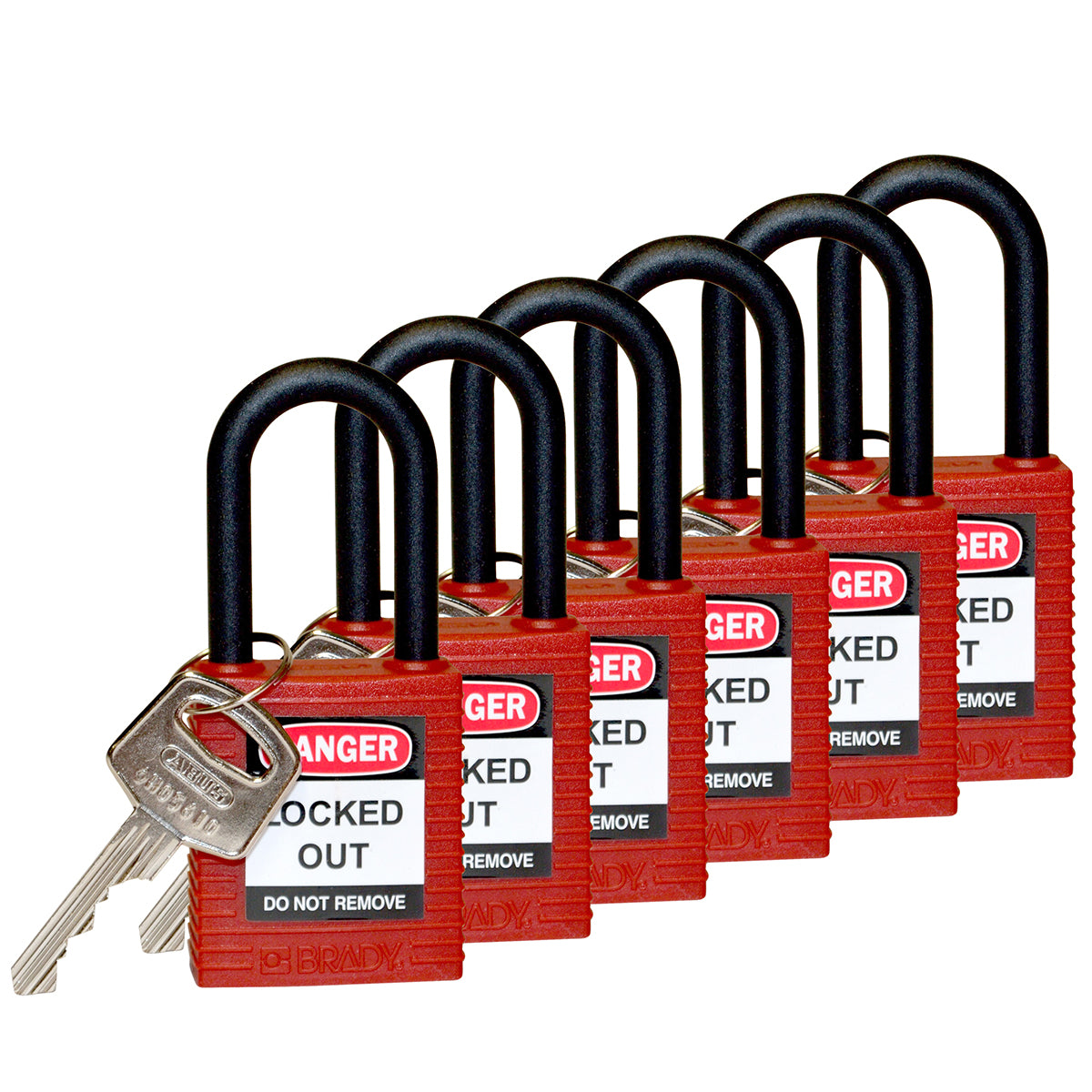

Safety locks - nylon shackle

CHF 199.77
Tax included Shipping calculated at checkout.

material

Display general product information or specific product information using metafields.

Brady material number

LOTO-6

Max. service temperature

120 °C

Color
  • Red

Width

38.10 mm

Height

86.50 mm

Shipping & Payment Terms
Shipping conditions

Delivery is only possible within Switzerland and Liechtenstein.


Shipping costs (including VAT)

We calculate shipping costs based on the order value.


Delivery times

Unless otherwise specified in the respective offer, delivery of the goods within Switzerland and Liechtenstein will take place within 3-5 days of conclusion of the contract (if advance payment has been agreed, after the date of your payment instruction). Please note that no deliveries are made on Sundays and public holidays. If you have ordered items with different delivery times, we will ship the goods in one shipment unless we have made different arrangements with you. In this case, the delivery time is determined by the item you ordered with the longest delivery time.




✅ Key features :

  • Security lock with nylon shackle – Fully electrically insulating, ideal for lockout/tagout in live areas
  • Reinforced nylon housing – lightweight, robust and resistant to chemicals, corrosion and extreme temperatures
  • 6-pin cylinder – for up to 14,000 different key profiles and high tamper resistance
  • Key retention function – The key can only be removed when the lock is closed.
  • Color-coded lock body (red) – for easy visual assignment
  • Keyed Differently (KD) – each lock has its own key
  • Ergonomic rib design – for better grip and easier handling
  • Insulating cylinder – protects against electric shocks when inserting the key

💼 Application :

  • Lockout/Tagout Security Measures in the electrical and industrial sectors
  • Safety protection of machines, switchgear and energy sources
  • Suitable for multi-user environments with individual key assignment
  • Ideal for electrical applications thanks to non-conductive bracket

🔧 Technical data :

  • Article number: 813594
  • Material: Sturdy reinforced nylon with plastic frame
  • Ironing material: Nylon
  • Locking mechanism: Conventional pin tumbler cylinder
  • Color: Red

  • Dimension: 38.10mm (W) x 86.50mm (H) x 20.83mm (D)
  • Iron thickness: 6.35 mm
  • Ironing height: 38.10 mm

📦 Scope of delivery :

  • 6 pieces / carton
  • 1 key per lock (Keyed Differently)
  • Delivery without lockout labels (sold separately)
