Brady  |  SKU: 149433

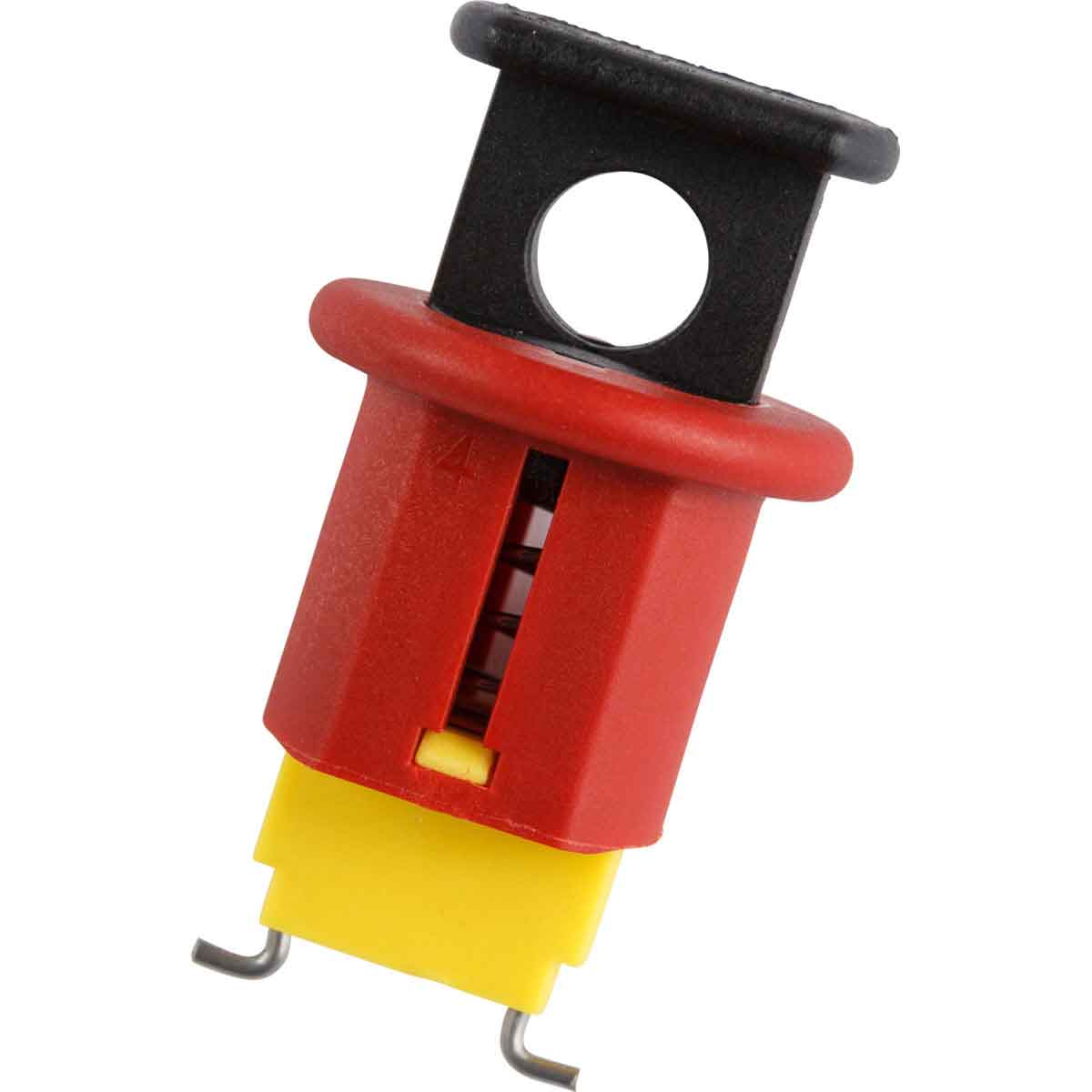

Miniature interlocking system for circuit breakers, type POW (ABB MS325)

CHF 32.70

Preis exkl. MWST. Versand wird beim Checkout berechnet.

material

Display general product information or specific product information using metafields.

Brady material number

LOTO-95

Max. service temperature

120 °C

Color
  • Black
  • Red
  • Yellow

Width

17.78 mm

Height

43.18 mm

Shipping & Payment Terms
Shipping conditions

Delivery is only possible within Switzerland and Liechtenstein.


Shipping costs (including VAT)

We calculate shipping costs based on the order value.


Delivery times

Unless otherwise specified in the respective offer, delivery of the goods within Switzerland and Liechtenstein will take place within 3-5 days of conclusion of the contract (if advance payment has been agreed, after the date of your payment instruction). Please note that no deliveries are made on Sundays and public holidays. If you have ordered items with different delivery times, we will ship the goods in one shipment unless we have made different arrangements with you. In this case, the delivery time is determined by the item you ordered with the longest delivery time.




✅ Key features :

  • Miniature locking system type POW for ABB MS325 – specifically designed for the secure locking of ABB MS325 circuit breakers
  • One-handed operation – simple and quick assembly without tools
  • Wide locking bars – ensure maximum stability and safety
  • Robust glass fiber reinforced nylon – non-conductive, chemical-resistant and durable
  • Space for 1 padlock – compatible with common lockout locks
  • RoHS and REACH compliant

💼 Application :

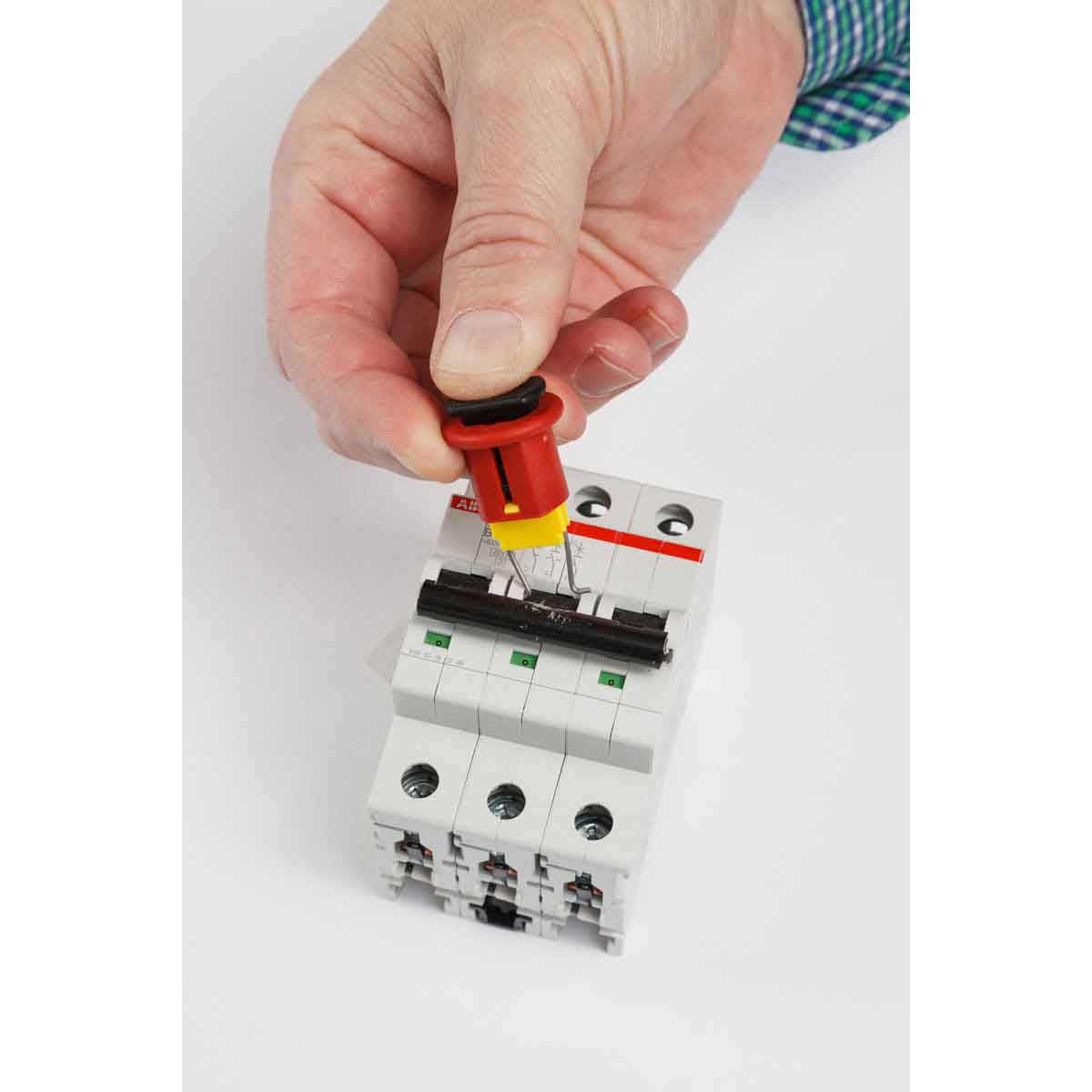

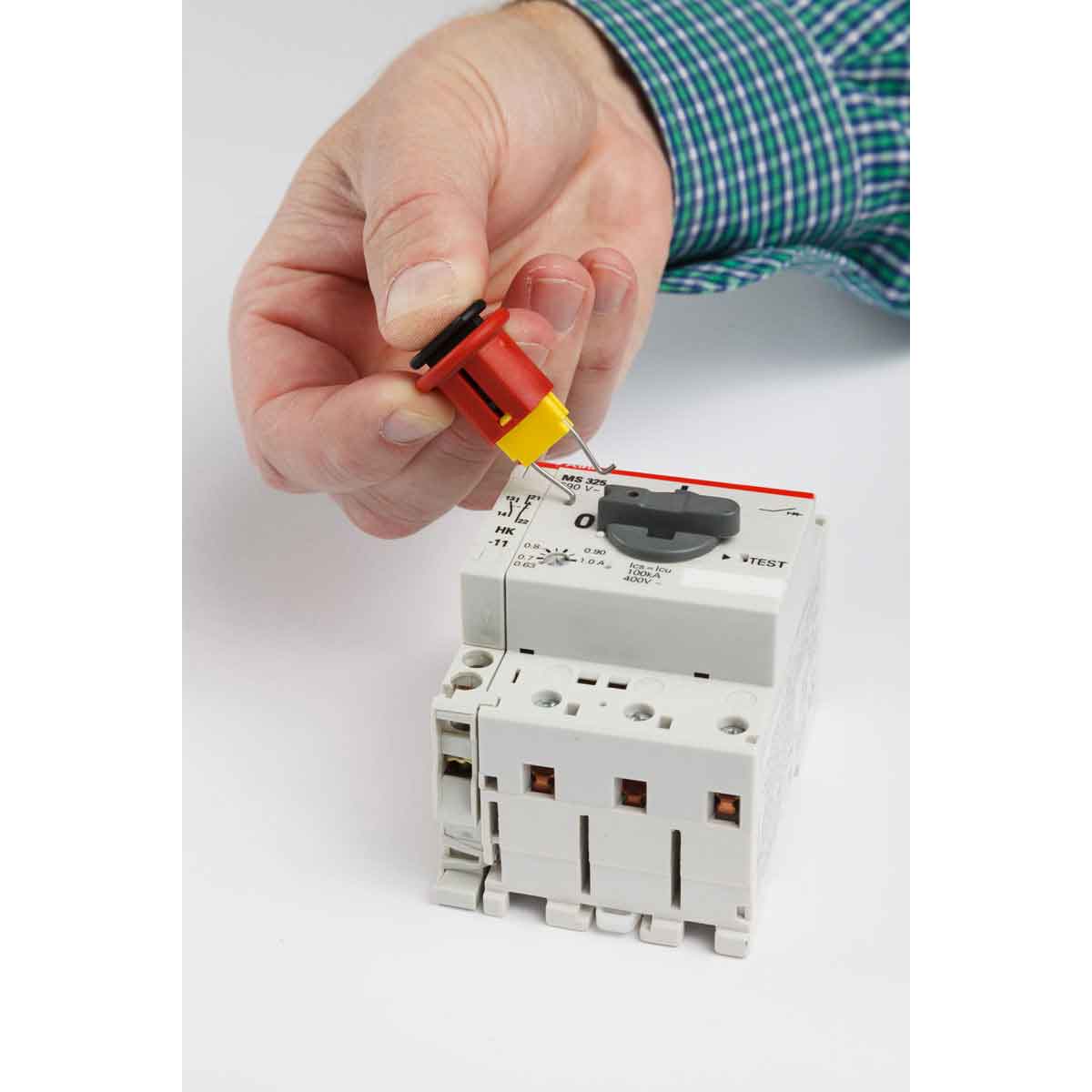

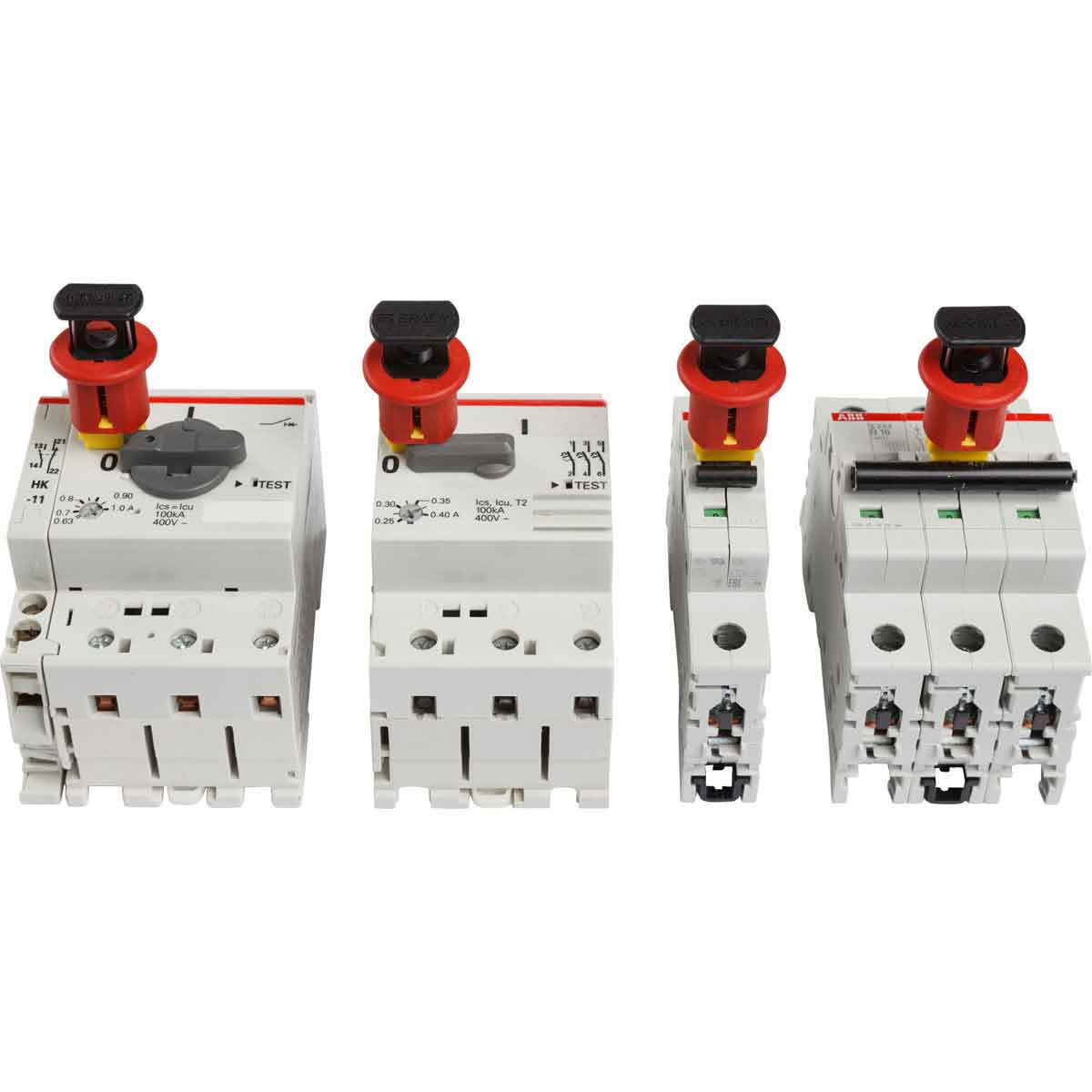

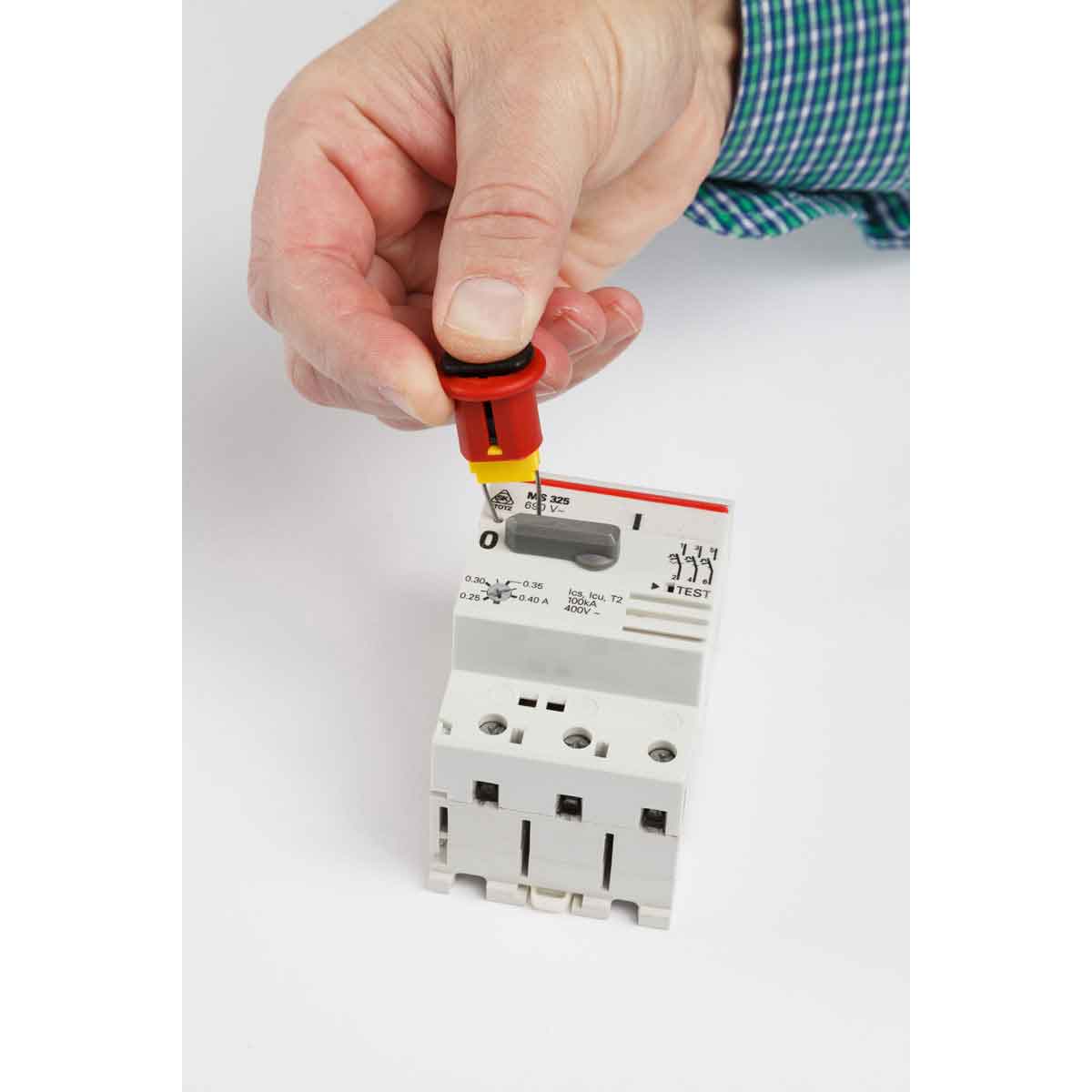

  • Securing of ABB MS325 circuit breakers
  • Deployment in Lockout/Tagout programs
  • Ideal for electrical hazard areas , maintenance and repair

🔧 Technical data :

  • Material : Glass fiber reinforced nylon
  • Color : Black/Red/Yellow
  • Dimensions : approx. 41.28 mm (H) × 20.57 mm (W) × 13.72 mm (D)
  • Mounting type : Tool-free, via push mechanism
  • Maximum shackle diameter of padlock : approx. 7 mm
  • Temperature range : -20 °C to +80 °C
  • Packaging unit : 1 piece
  • Country of origin : Mexico
  • Approvals : RoHS compliant, REACH SVHC-free

📦 Scope of delivery :

  • 1 piece Miniature locking system Brady 149433 for ABB MS325
  • Delivery without a padlock (sold separately)
