Brady  |  SKU: 148702

TagLock circuit breaker interlock: for multi-pole switches

CHF 29.73
Tax included Shipping calculated at checkout.

material

Display general product information or specific product information using metafields.

Brady material number

LOTO-85

Max. service temperature

120 °C

Color
  • Red

Width

62.23 mm

Height

33.02 mm

Shipping & Payment Terms
Shipping conditions

Delivery is only possible within Switzerland and Liechtenstein.


Shipping costs (including VAT)

We calculate shipping costs based on the order value.


Delivery times

Unless otherwise specified in the respective offer, delivery of the goods within Switzerland and Liechtenstein will take place within 3-5 days of conclusion of the contract (if advance payment has been agreed, after the date of your payment instruction). Please note that no deliveries are made on Sundays and public holidays. If you have ordered items with different delivery times, we will ship the goods in one shipment unless we have made different arrangements with you. In this case, the delivery time is determined by the item you ordered with the longest delivery time.




✅ Key features :

  • TAGLOCK™ Universal Lock – prevents the accidental activation of electrical circuits during maintenance work
  • Tag and lock in one step – combines visual warning with physical security
  • Suitable for multi-pole circuit breakers – ideal for 120/277 V applications
  • Robust housing made of glass-fiber reinforced nylon – high resistance to mechanical stress and temperature
  • Space for 1 padlock – Easy integration into lockout/tagout processes

💼 Application :

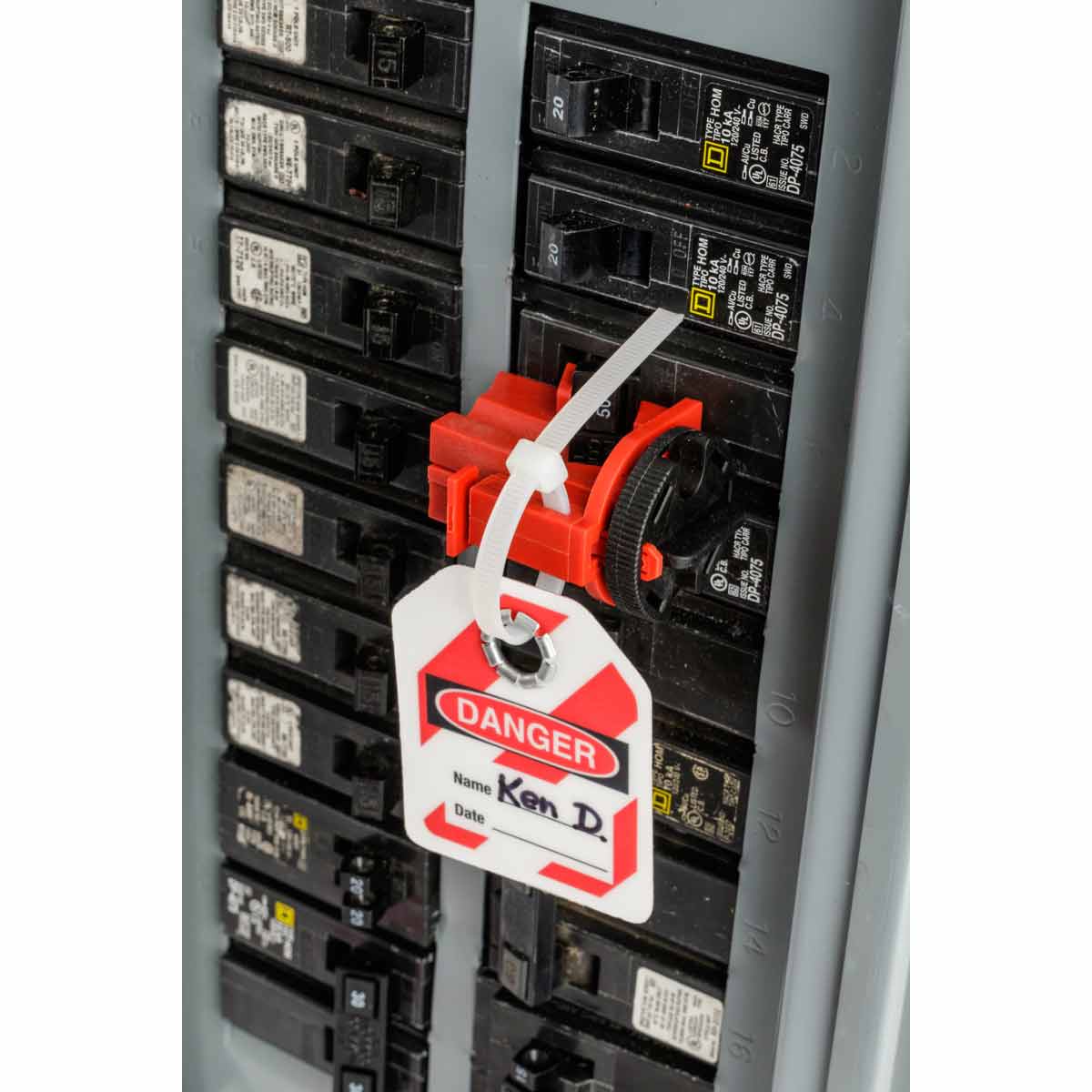

  • Securing of multi-pole circuit breakers during maintenance and repair
  • Deployment in Industry , Production facilities , utility companies
  • part of a Lockout/Tagout Program with a focus on electrical safety

🔧 Technical data :

  • Material: Glass fiber reinforced nylon
  • Color: Red
  • Mass: 62.23 mm (W) × 33.02 mm (H)
  • Max. shackle strength padlock: 7.37 mm
  • Minimum clear ironing width: 12.70 mm
  • Temperature range: -20 °C to +120 °C
  • Tension: 120/277 V
  • Maximum number of padlocks: 1
  • Article number: 148702
  • Including: 2 cable ties
  • Approvals: ANSI Z244.1-2003, CSA, OSHA 1910.147
  • REACH compliant, RoHS not applicable

📦 Scope of delivery :

  • 1 piece TAGLOCK circuit breaker interlock for multi-pole switches
  • 2 cable ties for fastening
  • Delivery without a padlock (sold separately)
