Brady  |  SKU: 105719

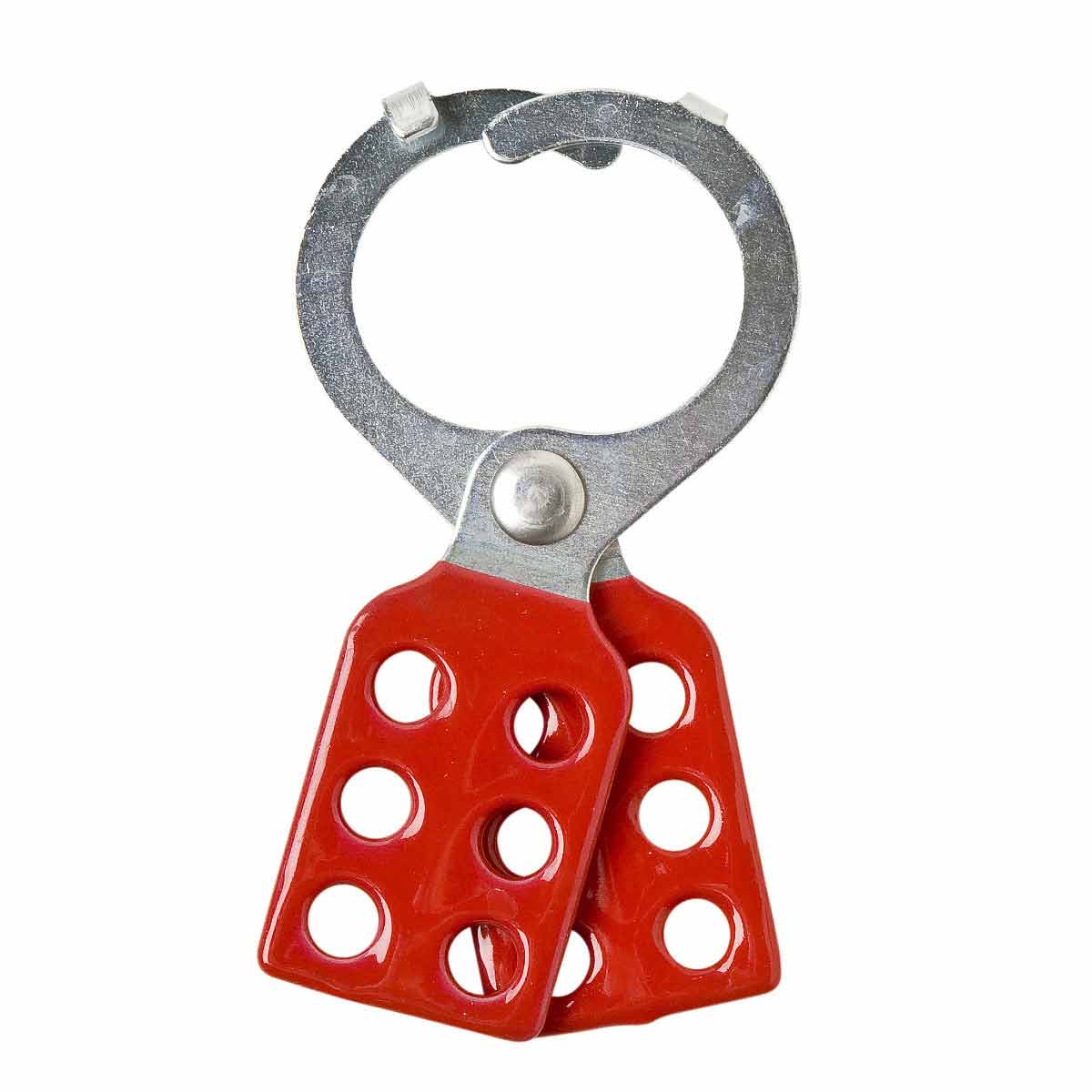

Steel locking shackle

CHF 20.65
Tax included Shipping calculated at checkout.

material

Display general product information or specific product information using metafields.

Brady material number

LOTO-64

Max. service temperature

177 °C

Color
  • Red

Width

40.01 mm

Height

111.05 mm

Shipping & Payment Terms
Shipping conditions

Delivery is only possible within Switzerland and Liechtenstein.


Shipping costs (including VAT)

We calculate shipping costs based on the order value.


Delivery times

Unless otherwise specified in the respective offer, delivery of the goods within Switzerland and Liechtenstein will take place within 3-5 days of conclusion of the contract (if advance payment has been agreed, after the date of your payment instruction). Please note that no deliveries are made on Sundays and public holidays. If you have ordered items with different delivery times, we will ship the goods in one shipment unless we have made different arrangements with you. In this case, the delivery time is determined by the item you ordered with the longest delivery time.




✅ Key features :

  • Steel locking bar with tamper-proof closure – ideal for group locking during lockout/tagout measures
  • Interlocking locking tabs – prevent opening by unauthorized persons
  • Made of hardened steel with a stainless coating – for maximum durability and corrosion protection
  • Bright red vinyl coating – for high visibility and additional safety
  • Space for up to 6 padlocks – enables multi-user locking
  • RoHS compliant REACH SVHC-free

💼 Application :

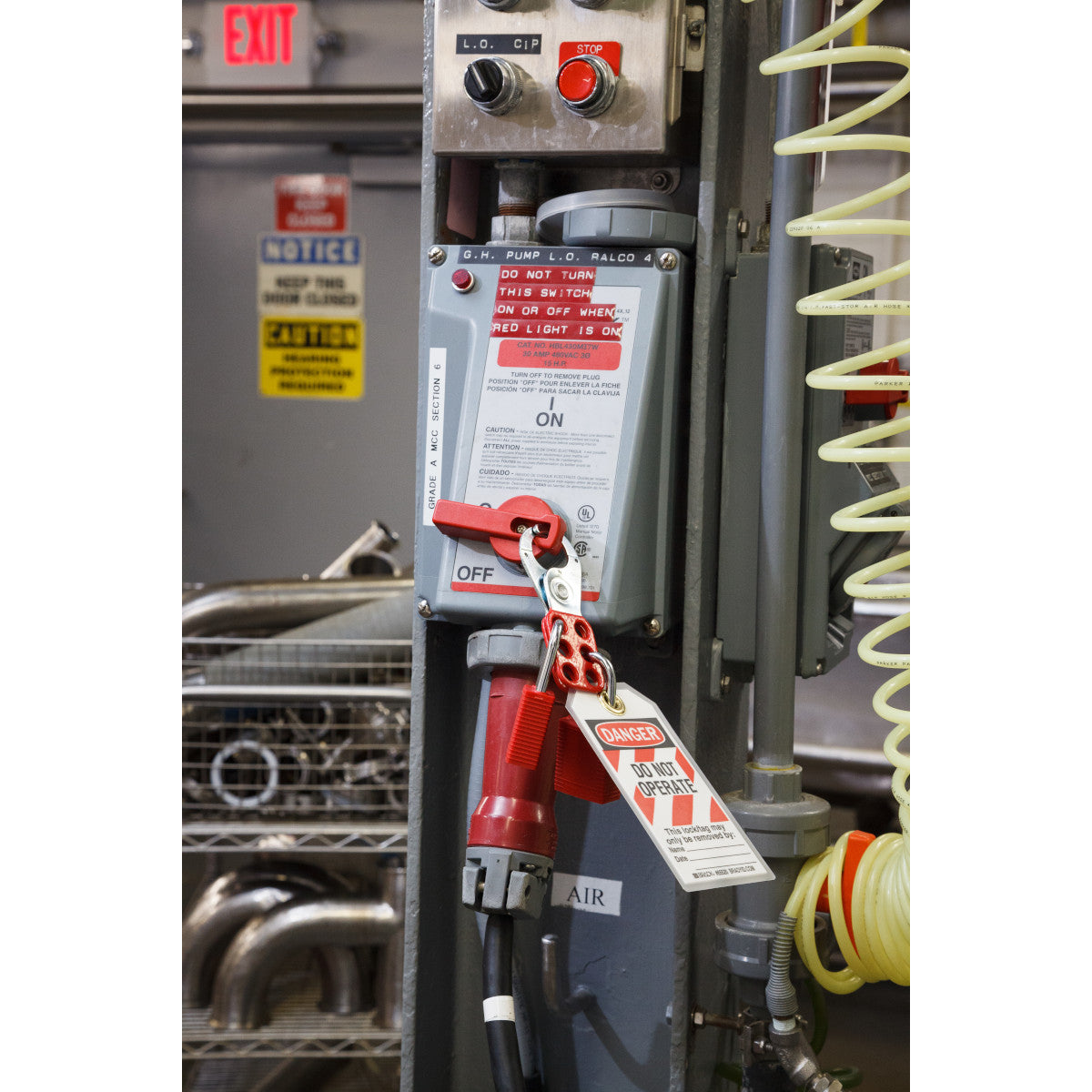

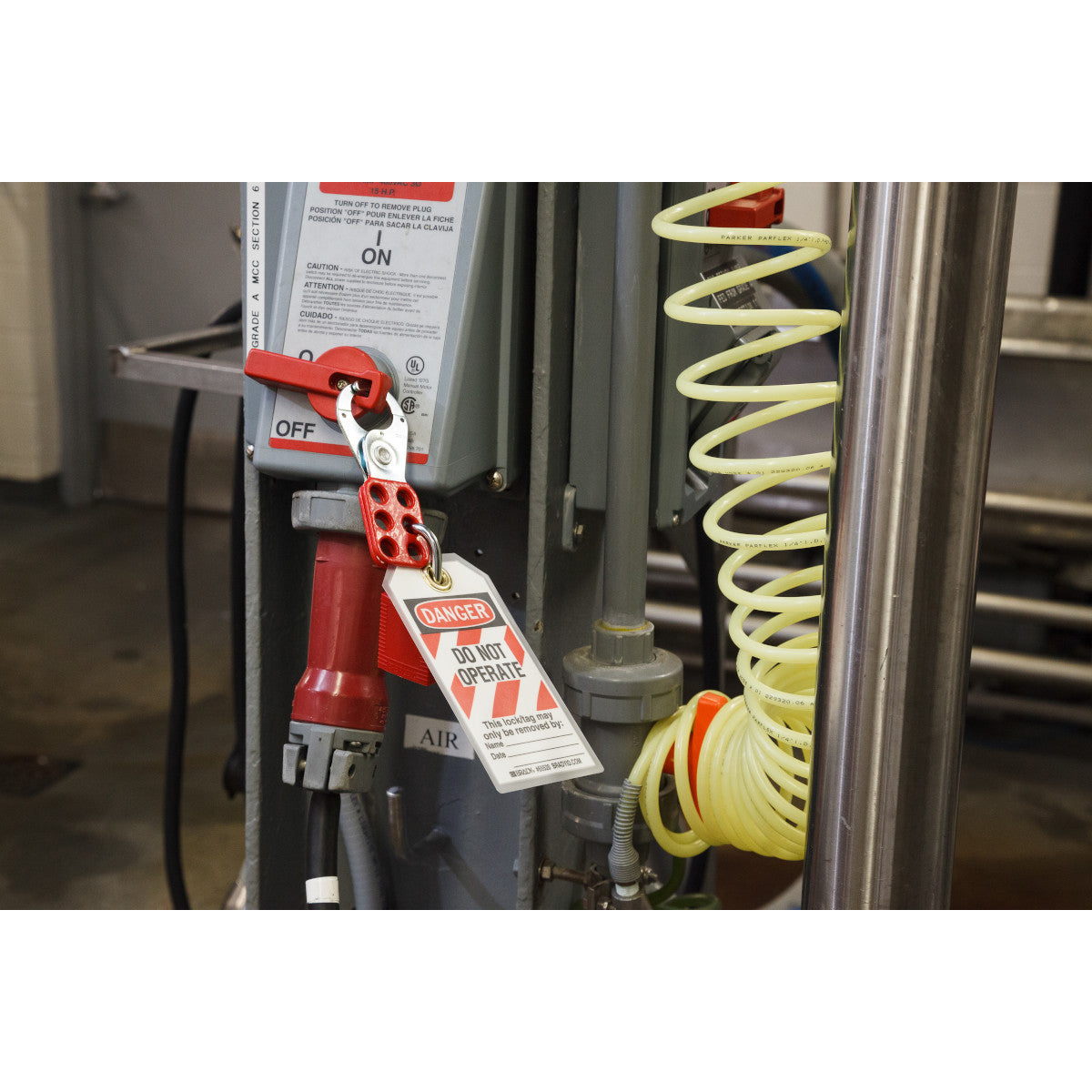

  • Group locking at mechanical energy sources
  • Deployment in Lockout/Tagout programs
  • Ideal for Industrial plants , workshops and security areas

🔧 Technical data :

  • Material : Hardened steel, vinyl coated
  • Color : Red
  • Dimensions : 40.01 mm (W) × 111.05 mm (H) × 5.69 mm (D)
  • Inner diameter of temple : 37.69 mm
  • Hole diameter : 8.51 mm
  • Max. shackle diameter of padlock : 8.51 mm
  • Minimum ironing clearance : 20.00 mm
  • Temperature range : -35 °C to +177 °C
  • Country of origin : China
  • Approvals : REACH SVHC-free, RoHS compliant

📦 Scope of delivery :

  • 1 piece Steel locking bar with Brady 105719 clasp
  • Delivery without padlocks (sold separately)
