Brady  |  SKU: 176964

Heat-resistant polyimide labels for M710 and BMP71

CHF 329.20

Preis exkl. MWST. Versand wird beim Checkout berechnet.

material

Display general product information or specific product information using metafields.

Brady material number

B-797

Max. service temperature

300 °C

Compatible printers
  • BMP71
  • M710

Adhesive used
  • Permanent acrylic adhesive

Color
  • White

Width

25.40 mm

Height

9.53 mm

Characteristics
  • Resistant to abrasion
  • Resistant to high temperatures
  • Resistant to low temperatures
  • Resistant to solvents and chemicals

Shipping & Payment Terms
Shipping conditions

Delivery is only possible within Switzerland and Liechtenstein.


Shipping costs (including VAT)

We calculate shipping costs based on the order value.


Delivery times

Unless otherwise specified in the respective offer, delivery of the goods within Switzerland and Liechtenstein will take place within 3-5 days of conclusion of the contract (if advance payment has been agreed, after the date of your payment instruction). Please note that no deliveries are made on Sundays and public holidays. If you have ordered items with different delivery times, we will ship the goods in one shipment unless we have made different arrangements with you. In this case, the delivery time is determined by the item you ordered with the longest delivery time.




✅ Key features :

  • Polyimide labels (B-797) – ideal for the Marking of printed circuit boards and electronic components
  • Glossy white surface - for smear-resistant thermal transfer printing with high readability
  • Extremely temperature resistant - suitable for Reflow and non-reflow soldering processes as well as aggressive cleaning cycles
  • Permanent acrylic adhesive – adheres reliably to smooth surfaces, even after multiple washes
  • UL-approved and MIL-STD-202G compliant – meets the highest requirements in electronics manufacturing
  • Brady Authentic Material – for optimal printer communication and maximum reliability
  • Compatible with M710 and BMP71 printers – recommended ribbon color: M7-R6300

💼 Application :

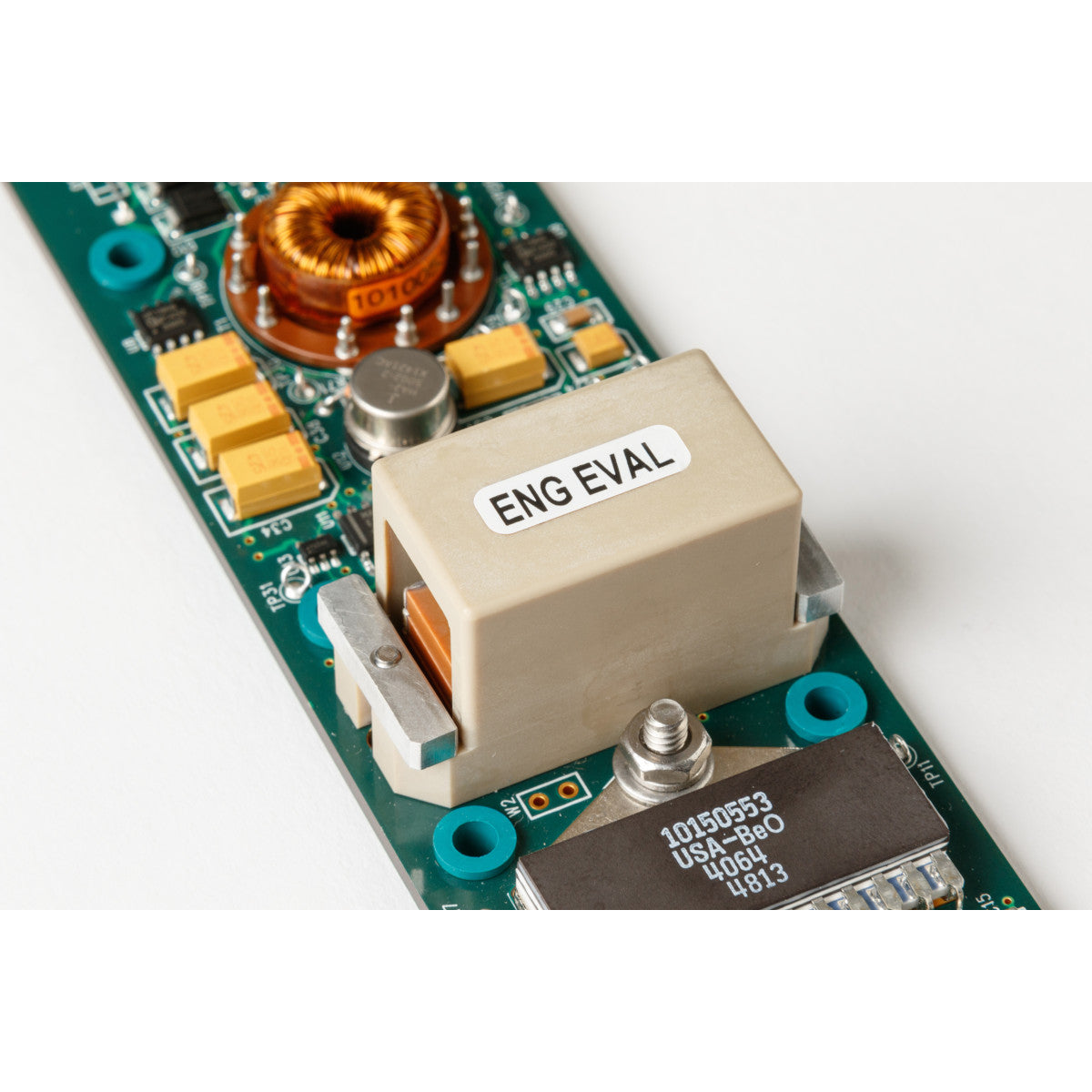

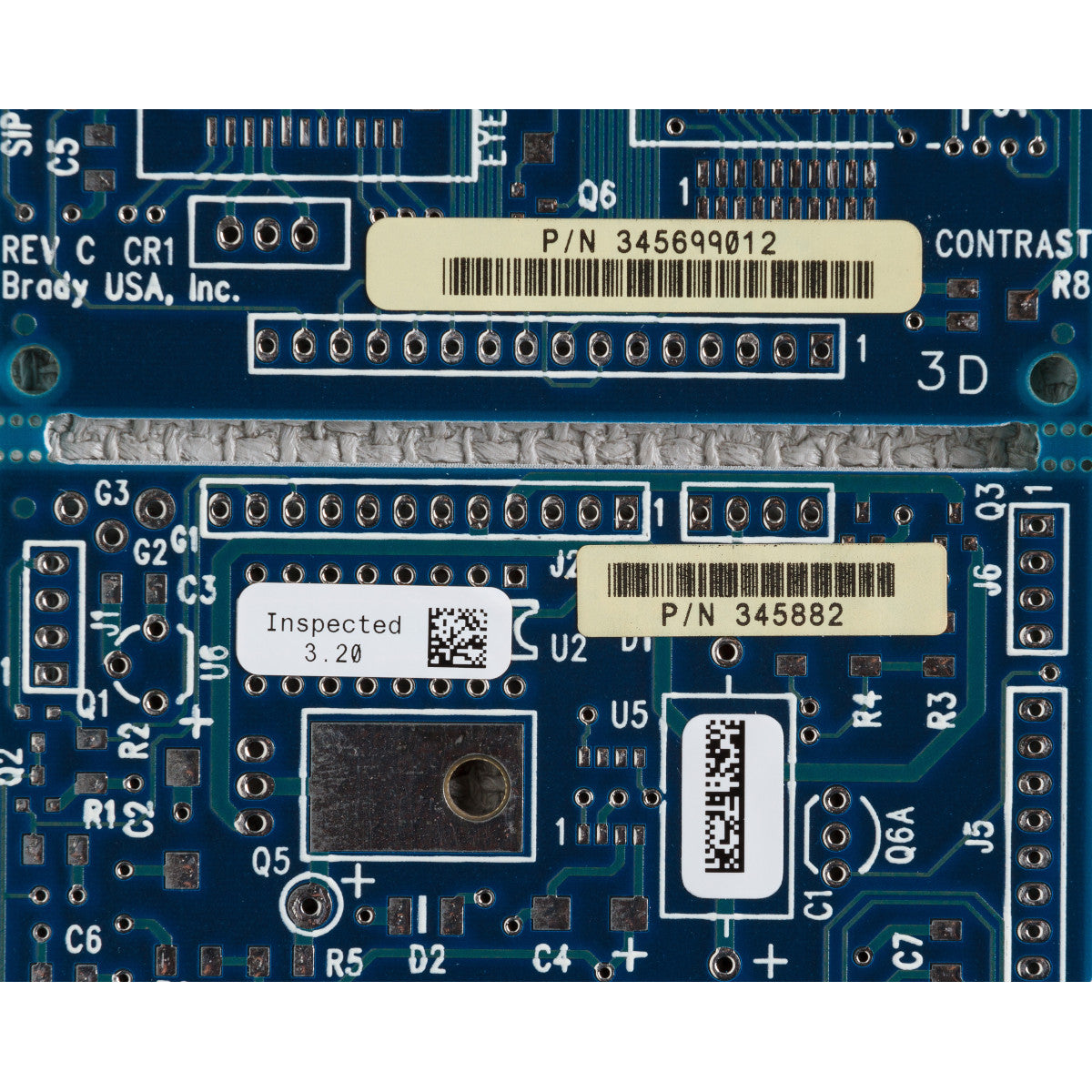

  • Marking of printed circuit boards (SMT, THT, top and bottom)
  • Component identification in electronics manufacturing
  • Temperature-indicating labels
  • Suitable for automatic application

🔧 Technical data :

  • Material : Polyimide (white, glossy)
  • Adhesive : Permanent acrylic adhesive
  • Dimensions : 25.40 mm × 9.53 mm (1" × 0.375")
  • Thickness : approx. 0.1 mm
  • Temperature range : -70 °C to +100 °C
  • Labels per carton : 500
  • Printing technology : Thermal transfer
  • Smart Cell™ : Yes
  • Certifications : UL969, MIL-STD-202G Method 215K, RoHS & REACH compliant

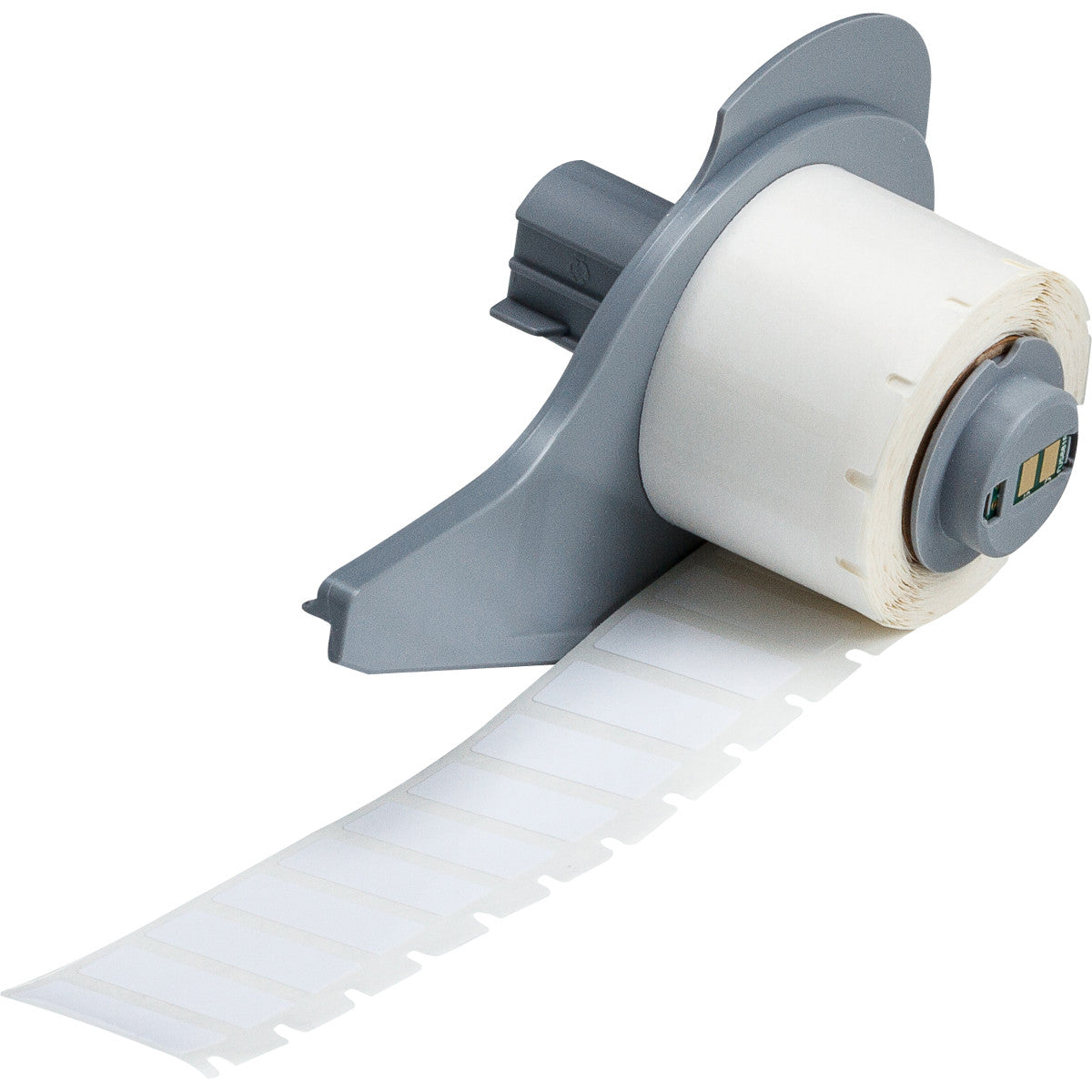

📦 Scope of delivery :

  • 1 carton with 500 heat-resistant polyimide labels
  • Format: Rectangular , 1 label per row
  • Ribbon not included (sold separately)
